ADU Construction Plan #LD-1910
- 420 ft²
- Styles: Contemporary
- Stories: 1
- Bedrooms: Studio
- Baths: 1
Specs & Features
| DIMENSION | Depth : 21’00″‘ Height : 13’05” Width : 20’00” |
| AREA | First Floor: 420 sq/ft |
| CEILING | Main Ceiling : Vaulted Celing |
| ROOF | Roof Framing : Conventional Primary Pitch : 2:12 Roof Type : Composition shingle |
| EXTERIOR WALL FRAMING | Exterior Wall Finish : Vertical siding / teck wood Framing : 2″x6″ |
| KITCHEN FEATURES | Full kitchen |
| ROOMS | Living Space: width 11’02” x depth 19′ Den: width 10′ x depth 10′ Kitchen: width 8’10” x depth 11′ 8″ |
This plan can be customized! Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 818 703-0232 for assistance.

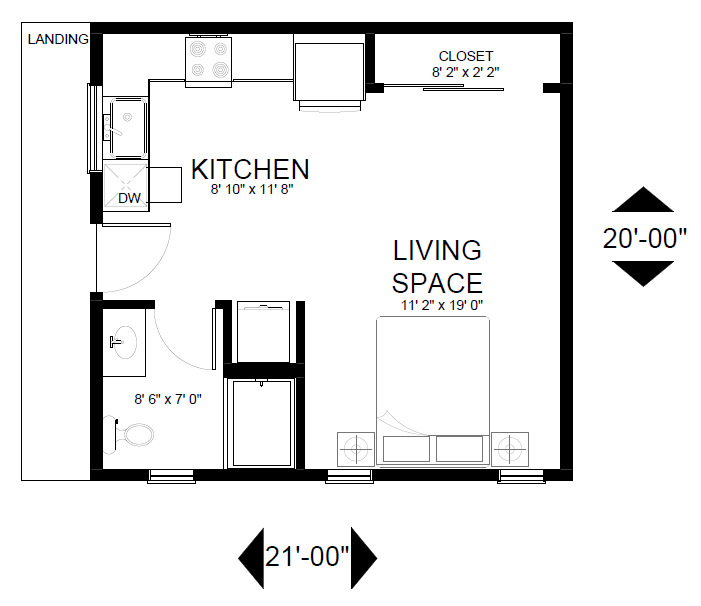

Floor Plan
Plan
What’s included
| Title |
Property information Sheet index Governing notes (Using CA 2016) |
| Floor Plan | Position and dimensions of doors, windows, interior walls, etc. are indicated |
| Electrical Layouts | Suggested locations for electrical components: lighting fixtures, switches, and outlets |
| Roof Plans |
Dimensioned Roof Plan Roof notes |
| Exterior Elevations | Detailed drawings of all sides of the building Suggested window sizes and types Suggested exterior materials, and critical vertical dimensions |
| Building Section and Details: | Wall and roof section Indicates dimensions of wall plate heights from slab-on-grade Indicates eave overhang dimension from exterior wall studs Generic exterior wall details |
| Notes | General notes for construction |
About Formats
| PDF plan sets are best for fast electronic delivery and inexpensive local printing. | |
| CAD | For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
